Air conditioning unit central air conditioner grinding noise Horizontal Concealed Fan Coil Units

Ask Lasest Price
Brand Name :	VENTECH
Model Number :	Horizontal Concealed Fan Coil Units
Certification :	CE
Price :	1000USD-5000USD/unit
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50 Containers Per Month
Delivery Time :	30-60days

Add to Cart

Product Details
Company Profile

Air conditioning unit central air conditioner grinding noise Horizontal Concealed Fan Coil Units

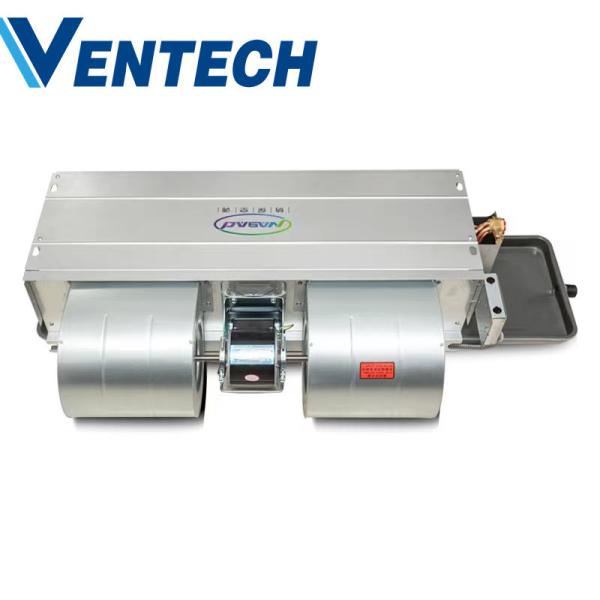

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Horizontal Concealed Fan Coil Units

Horizontal Concealed FCU specification table				Vertical coil three pipes system
Model FP WA-3				200	300	400	500	600	700	800	1000	1200	1400
Air volume	H		m3/h	340	510	680	850	1020	1200	1360	1700	2040	2380
	M			280	380	515	660	705	910	1040	1280	1560	1800
	L			1B0	260	340	430	530	610	710	860	1060	1190
Cooling capacity	H		W	2020	3010	3700	4560	5600	6400	7600	9000	10800	12600
	M			1683	2742	3000	3716	4424	5630	6435	7470	9296	10623
	L			1561	2293	2479	2921	3793	4905	5606	7200	8543	8820
Heating capacity	H		W	3500	5300	6700	8200	10100	10940	13500	15000	18900	20000
	M			2526	3533	5153	5954	7099	8057	9906	11560	15163	18600
	L			1682	2321	3449	4258	4833	S558	6774	7500	10085	14240
Motor	Input power(H)	Normal ESP (12Pa)	W	37	52	62	76	96	113	134	152	189	228
		High ESP (30Pa)		44	69	72	87	108	134	156	174	212	253
		Super High ESP (50Pa)		49	66	84	100	118	158	174	210	250	300
Heat exchanger (3-pipe)	Cooling/ Heating	Water flow	m3/h	0.367	0.517	0.638	0 796	0.978	1.128	1.371	1.516	1 822	2.152
Heat exchanger (3-pipe)	Cooling/ Heating	Water drop pressure	kPa	17	22	18	20	30	20	30	30	30	40
Noise	H	Normal ESP (12Pa)	dB(A)	≤37	≤39	≤41	≤43	≤45	≤47	≤46	≤48	≤50	≤52
		High ESP (30Pa)		≤40	≤42	≤44	≤46	≤47	≤49	≤48	≤50	≤52	≤54
		Super High ESP (50Pa)		≤42	≤44	≤46	≤47	≤49	≤51	≤50	≤52	≤54	≤56
Dimension	Length		mm	655	785	885	945	1065	1185	1405	1525	1725	1925
	Width			496	466	466	466	466	466	466	466	466	466
	Height			243	243	243	243	243	243	243	243	243	243
Unit weight	No return air box		KG	12	14	16	17	18	19	26	29	32	35

*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.

Cassette Air Conditioner

The cassette AC is meant for installation on a false ceiling. It is like the split AC when the number of parts is compared. This system also uses a set of pipes to carry the refrigerant from the condenser unit to the cassette unit mounted on the ceiling.

The cassette is a thin unit and can be used in narrow spaces that would be obstructed if fitted with a wall-mounted split unit.

This AC is also suitable for areas that have very high ceilings. Cassette aircons have four-way airflow, and cooling is more uniform than other aircons discussed so far. In the case of a high ceiling, the cassette AC is superior to other forms. Heat rises up and is extracted by the cassette unit. The four-way airflow provides a consistent temperature throughout the premises.

❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.

Email:karen@chinaventech.com

Tel:0086 13620119598
